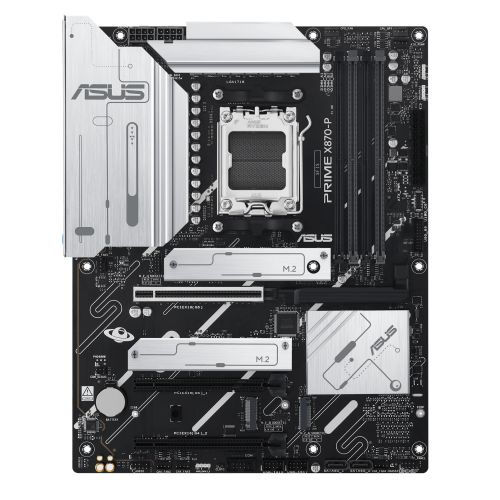

Asus PRIME X870-P AMD X870 AM5 ATX 4 DDR5 HDMI 2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870
• DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory
  Supports AMD EXPO
  ASUS Enhanced Memory Profile"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs
• Maximum Memory: 192GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x USB4 (40Gbps) support USB Type-C display outputs
• PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
  1 x PCIe 5.0 x16 (supports x16 mode)

  Ryzen 8000 CPUs:
  1 x PCIe 4.0 x16 (supports x8/x4 mode)

  AMD X870 Chipset:
  2 x PCIe 4.0 x16 (supports x1 mode)
• Storage: 2 x SATA III
  4 x M.2

  Ryzen 9000 & 7000 CPUs:
  M.2_1 (2280) - PCIe 5.0 x4

  Ryzen 8000 CPUs:
  M.2_1 (2280) - PCIe 4.0 x4

  X870E Chipset:
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4
  M.2_3 (2280 ) - PCIe 4.0 x4
  M.2_4 (2280 ) - PCIe 3.0 x2
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU
• Wireless: -
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  2 x USB4 (40Gbps) Type-C
  1 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 2 x USB4 (40Gbps) Type-C
  1 x USB 10Gbps Type-A
  3 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x HDMI
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  4 x M.2 (Key M)
  2 x SATA 6Gb/s
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
• .: 3 x Addressable Gen 2
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4860 kg
• Warranty: 3 Years
• M.2 Slot(s): Yes (M.2)
• No. LAN Ports: 1 x LAN
• Max LAN Speed: 2.5GB LAN
