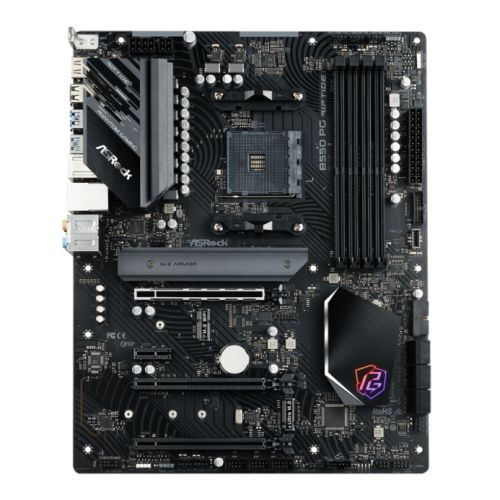

Asrock B550 PHANTOM GAMING RIPTIDE AMD B550 AM4 ATX 4 DDR4

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD B550
• DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4933+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
• Multi-GPU Support: Supports AMD Quad CrossFireX
• PCI/PCI Express: 3 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2260/2280/22110) - SATA & PCIe
• RAID: "Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  Supports RAID 0 and RAID 1 for M.2 NVMe storage devices"
• Wireless: -
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-A (at back)
  10 x USB 3.2 Gen1 Type-A (6 at back, 4 at mid-board)
  8 x USB 2.0 (2 at back, 6 at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2 Header"
• Back Panel I/O Ports: 1 x Antenna Bracket
  1 x PS/2 Mouse/Keyboard
  1 x HDMI Port
  1 x Optical SPDIF Out
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  6 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  5 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Panel Audio
  1 x Thunderbolt AIC
• .: 3 x USB 2.0
  2 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2 Header
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  1 x Graphics Card Holder
  3 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket"
• Additional Features: See Overview / Video
• Package Type: Retail
• Package Weight: 1.9500 kg
• Warranty: 2 Year Replacement Warranty
• M.2 Slot(s): Yes (M.2)
• No. LAN Ports: 1 x LAN
• Max LAN Speed: 2.5GB LAN
• RGB Lighting: Out of the box RGB lighting
